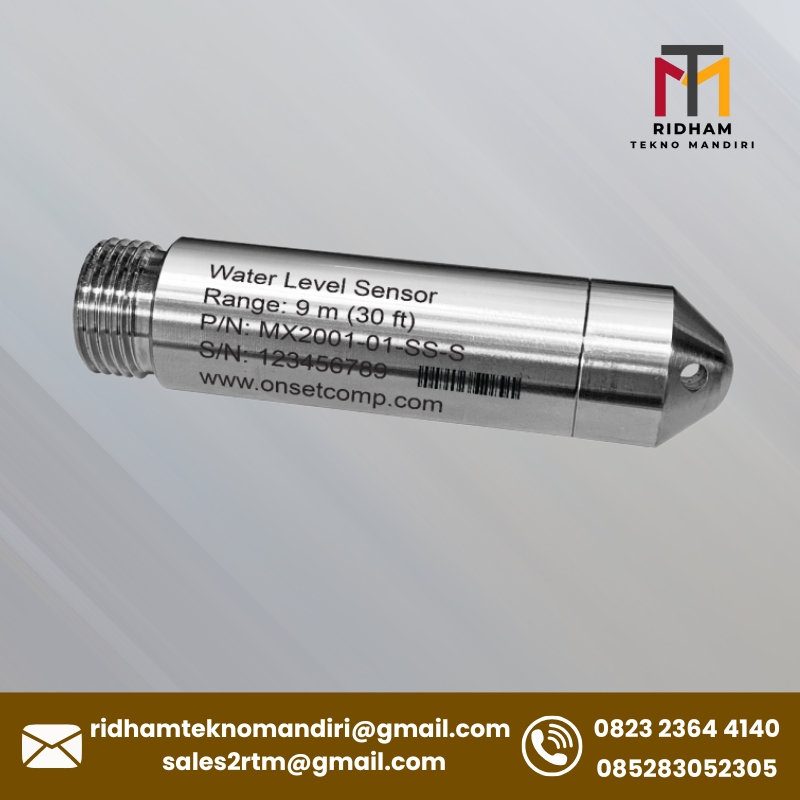

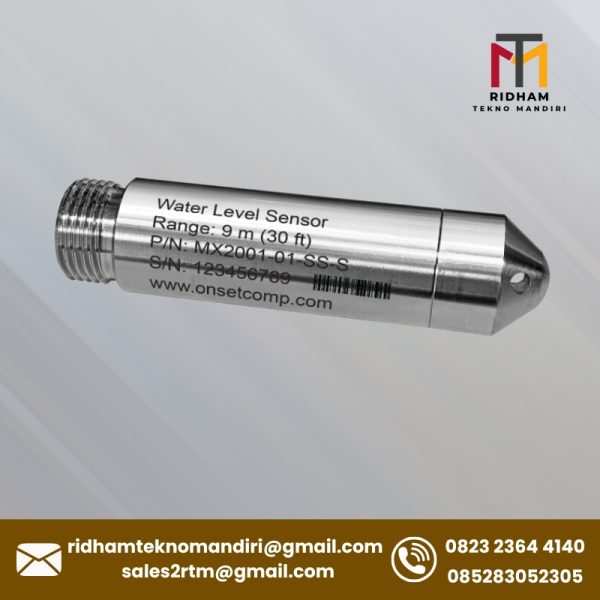

Water Level Sensor

Water Level Sensor

Untuk digunakan dengan HOBO MX2001 Bluetooth water level loggers, HOBO MicroRX Water Level Stations (RX2103 dan RX2104), HOBO RX3000 Remote Monitoring Station, dan HOBOnet Remote Water Level Monitoring System, untuk pengukuran tekanan air, temperatur, dan level air yang akurat. Sensor ini tersedia dalam empat rentang kedalaman, dan hadir dalam model stainless-steel atau titanium (direkomendasikan untuk penggunaan di air laut).

Pemesanan dan pertanyaan seputar produk bisa langsung menghubungi kami dengan menekan tombol whatsapp di bawah ini :

Order via Whatsapp 1
Order via Whatsapp 2

Features

  • Non-vented design mengurangi maintenance
  • Durable, ceramic sensor
  • 3-point NIST-traceable calibration certificate

Specifications

Pressure (Absolute) and Water Level Measurements MX2001-01-SS-S and MX2001-01-Ti-S



  • Operation Range: 0 hingga 207 kPa (0 hingga 30 psia); sekitar 0 hingga 9 m (0 hingga 30 ft) kedalaman air di permukaan laut, atau 0 hingga 12 m (0 hingga 40 ft) air pada ketinggian 3,000 m (10,000 ft)
  • Factory Calibrated Range: 69 hingga 207 kPa (10 hingga 30 psia), 0 hingga 40°C (32 hingga 104°F)
  • Burst Pressure: 310 kPa (45 psia) atau kedalaman 18 m (60 ft)
  • Water Level Accuracy*:
    • Typical error: 0.05% FS, 0.5 cm (0.015 ft) air
    • Maximum error: 0.1% FS, 1.0 cm (0.03 ft) air
  • Raw Pressure Accuracy*: 0.3% FS, 0.62 kPa (0.09 psi) maximum error
  • Resolution: <0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) air
  • Pressure Response Time (90%)*: <1 second pada stable temperature
  • Dimensions: diameter 2.54 cm (1.0 inches), panjang 9.91 cm (3.9 inches)
  • Weight:
    • Stainless sensor (MX2001-0x-SS-S): Sekitar 141.4 g (4.99 oz) di udara; sekitar 53.9 g (1.9 oz) di air tawar
    • Titanium sensor (MX2001-0x-Ti-S): Sekitar 80 g (2.83 oz) di udara; sekitar 37 g (1.3 oz) di air tawar
  • Wetted Materials:
    • Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton dan Buna-N O-rings; ceramic sensor di stainless steel end cap
    • Titanium sensor (MX2001-0x-Ti-S): Acetal housing, PVC end cap; Viton dan Buna-N O-rings; ceramic sensor di Titanium end cap
    • Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket
  • Environmental Rating: IP68



Pressure (Absolute) and Water Level Measurements MX2001-02-SS-S



  • Operation Range: 0 hingga 400 kPa (0 hingga 58 psia); sekitar 0 hingga 30.6 m (0 hingga 100 ft) kedalaman air di permukaan laut, atau 0 hingga 33.6 m (0 hingga 111 ft) air pada ketinggian 3,000 m (10,000 ft)
  • Factory Calibrated Range: 69 hingga 400 kPa (10 hingga 58 psia), 0 hingga 40°C (32 hingga 104°F)
  • Burst Pressure: 500 kPa (72.5 psia) atau kedalaman 40.8 m (134 ft)
  • Water Level Accuracy*:
    • Typical error: 0.05% FS, 1.5 cm (0.05 ft) air
    • Maximum error: 0.1% FS, 3.0 cm (0.1 ft) air
  • Raw Pressure Accuracy*: 0.3% FS, 1.20 kPa (0.17 psi) maximum error
  • Resolution: <0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) air
  • Pressure Response Time (90%)*: <1 second pada stable temperature
  • Dimensions: diameter 2.54 cm (1.0 inches), panjang 9.91 cm (3.9 inches)
  • Weight: Sekitar 141.4 g (4.99 oz) di udara; sekitar 53.9 g (1.9 oz) di air tawar
  • Wetted Materials: Stainless steel housing; Viton dan Buna-N O-rings; ceramic sensor di stainless steel end cap. Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket
  • Environmental Rating: IP68



Pressure (Absolute) and Water Level Measurements MX2001-03-SS-S



  • Operation Range: 0 hingga 850 kPa (0 hingga 123.3 psia); sekitar 0 hingga 76.5 m (0 hingga 251 ft) kedalaman air di permukaan laut, atau 0 hingga 79.5 m (0 hingga 262 ft) air pada ketinggian 3,000 m (10,000 ft)
  • Factory Calibrated Range: 69 hingga 850 kPa (10 hingga 123.3 psia), 0 hingga 40°C (32 hingga 104°F)
  • Burst Pressure: 1,200 kPa (174 psia) atau kedalaman 112 m (368 ft)
  • Water Level Accuracy*:
    • Typical error: 0.05% FS, 3.8 cm (0.125 ft) air
    • Maximum error: 0.1% FS, 7.6 cm (0.25 ft) air
  • Raw Pressure Accuracy*: 0.3% FS, 2.55 kPa (0.37 psi) maximum error
  • Resolution: <0.085 kPa (0.012 psi), 0.87 cm (0.028 ft) air
  • Pressure Response Time (90%)*: <1 second pada stable temperature
  • Dimensions: diameter 2.54 cm (1.0 inches), panjang 9.91 cm (3.9 inches)
  • Weight: Sekitar 141.4 g (4.99 oz) di udara; sekitar 53.9 g (1.9 oz) di air tawar
  • Wetted Materials: Stainless steel housing; Viton dan Buna-N O-rings; ceramic sensor di stainless steel end cap. Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket
  • Environmental Rating: IP68



Pressure (Absolute) and Water Level Measurements MX2001-04-SS-S and MX2001-04-Ti-S



  • Operation Range: 0 hingga 145 kPa (0 hingga 21 psia); sekitar 0 hingga 4 m (0 hingga 13 ft) kedalaman air di permukaan laut, atau 0 hingga 7 m (0 hingga 23 ft) air pada ketinggian 3,000 m (10,000 ft)
  • Factory Calibrated Range: 69 hingga 145 kPa (10 hingga 21 psia), 0 hingga 40°C (32 hingga 104°F)
  • Burst Pressure: 310 kPa (45 psia) atau kedalaman 18 m (60 ft)
  • Water Level Accuracy*:
    • Typical error: 0.075% FS, 0.3 cm (0.01 ft) air
    • Maximum error: 0.15% FS, 0.6 cm (0.02 ft) air
  • Raw Pressure Accuracy*: 0.3% FS, 0.43 kPa (0.063 psi) maximum error
  • Resolution: <0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) air
  • Pressure Response Time (90%)*: <1 second pada stable temperature
  • Dimensions: diameter 2.54 cm (1.0 inches), panjang 9.91 cm (3.9 inches)
  • Weight:
    • Stainless sensor (MX2001-0x-SS-S): Sekitar 141.4 g (4.99 oz) di udara; sekitar 53.9 g (1.9 oz) di air tawar
    • Titanium sensor (MX2001-0x-Ti-S): Sekitar 80 g (2.83 oz) di udara; sekitar 37 g (1.3 oz) di air tawar
  • Wetted Materials:
    • Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton dan Buna-N O-rings; ceramic sensor di stainless steel end cap
    • Titanium sensor (MX2001-0x-Ti-S): Acetal housing; Viton dan Buna-N O-rings; ceramic sensor di Titanium end cap
    • Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket
  • Environmental Rating: IP68



Temperature (Water Level Sensors MX2001-0x-SS-S and MX2001-0x-Ti-S)



  • Operation Range: -20 hingga 50°C (-4 hingga 122°F)
  • Accuracy: 0.44°C dari 0 hingga 50°C (0.79°F dari 32 hingga 122°F), lihat Plot A
  • Resolution: 0.1°C pada 25°C (0.18°F pada 77°F), lihat Plot A
  • Response Time (90%): 5 menit di air (typical)
  • Stability (Drift): 0.1°C (0.18°F) per tahun
  • Dimensions: diameter 2.54 cm (1.0 inches), panjang 9.91 cm (3.9 inches)
  • Weight:
    • Stainless sensor (MX2001-0x-SS-S): Sekitar 141.4 g (4.99 oz) di udara; sekitar 53.9 g (1.9 oz) di air tawar
    • Titanium sensor (MX2001-0x-Ti-S): Sekitar 80 g (2.83 oz) di udara; sekitar 37 g (1.3 oz) di air tawar
  • Wetted Materials:
    • Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton dan Buna-N O-rings; ceramic sensor di stainless steel end cap
    • Titanium sensor (MX2001-0x-Ti-S): Acetal housing; Viton dan Buna-N O-rings; ceramic sensor di Titanium end cap
    • Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket
  • Environmental Rating: IP68
