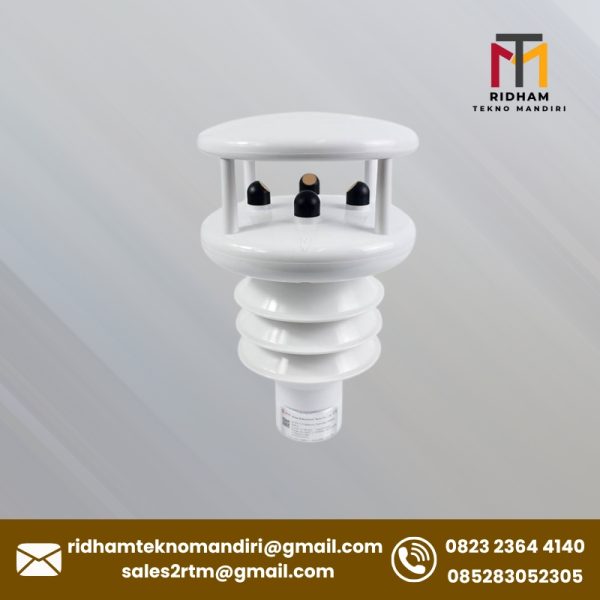

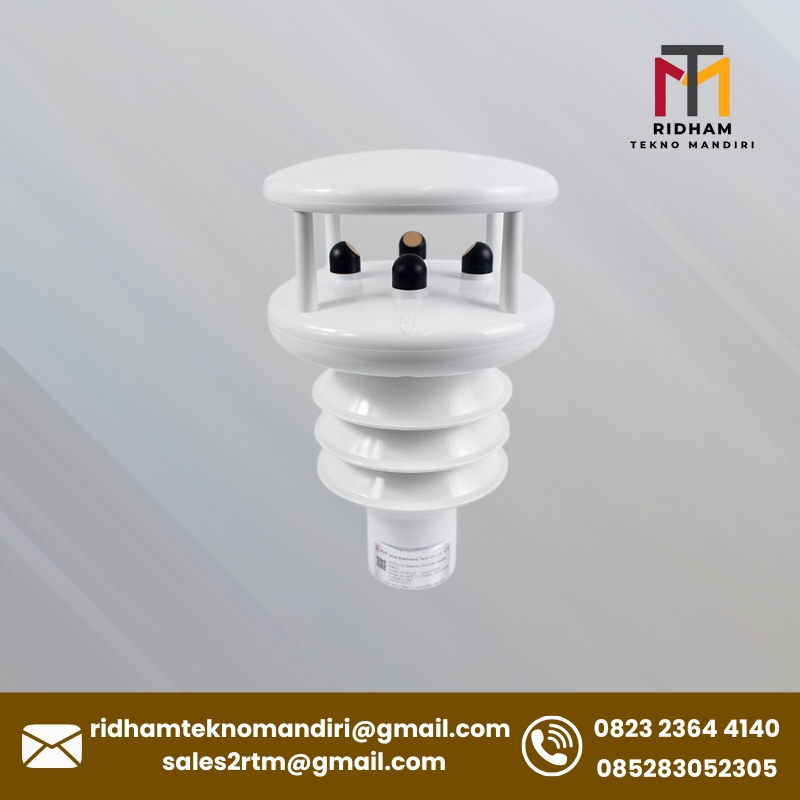

RK900-10 Ultrasonic Automatic Weather Sensor

RK900-10 Ultrasonic Automatic Weather Sensor

RK900-10 automatic weather instrument secara bersamaan mengukur atmospheric temperature, atmospheric humidity, air pressure, wind speed, wind direction, solar radiation, illuminance, dust concentration, dan precipitation.

Sensor temperature, humidity, dan air pressure ditempatkan di dalam radiation shield, sedangkan wind speed dan direction menggunakan prinsip ultrasonic. Rainfall terdeteksi dengan 24G radar detection, yang dapat dengan cepat mengukur rainfall dan intensitasnya.

Internal GPS global positioning module dan electronic compass memberikan indikasi latitude dan longitude serta relative speed, yang dapat menghitung real dan virtual wind speed serta direction, sehingga sangat cocok untuk dipasang pada motion vector seperti special vehicles atau vessels. Berbagai functional modules dan measurement parameters dapat dikombinasikan sesuai kebutuhan pengguna.

Pemesanan dan pertanyaan seputar produk bisa langsung menghubungi kami dengan menekan tombol whatsapp di bawah ini :

Order via Whatsapp 1
Order via Whatsapp 2

Specifications

  • Measure item: Wind speed, Wind direction, Atmospheric temperature, Atmospheric humidity, Atmospheric pressure, Precipitation, Solar radiation, Illuminance, Dust concentration (PM2.5/PM10), Noise, Visibility, GPS, Electronic Compass, Inclination measurement
  • Principle: Ultrasonic (Wind speed and direction), MEMS (Atmospheric temperature, humidity, and pressure), Radar (Precipitation), Silicon-cell (Solar radiation and Illuminance), Photoelectric scattering (Dust concentration), MEMS (Noise), Forward scattering (Visibility)
  • Range:
    • Wind speed: 0-60m/s
    • Wind direction: 0-360º
    • Atmospheric temperature: -40-+80℃
    • Atmospheric humidity: 0-100%RH
    • Atmospheric pressure: 300-1100hPa
    • Precipitation: 0-200mm/hr.
    • Solar radiation: 0-2000W/m2
    • Illuminance: 0-200000lux
    • Dust concentration: 0-2000μg/m3
    • Noise: 30-130dB
    • Visibility: 20-10000m
    • Inclination measurement: -90°-+90°
  • Resolution:
    • Wind speed: 0.01m/s
    • Wind direction: 1°
    • Atmospheric temperature: 0.1℃
    • Atmospheric humidity: 0.1%RH
    • Atmospheric pressure: 0.1hpa
    • Precipitation: 0.1mm
    • Solar radiation: 0.1W/m2
    • Illuminance: 0.1lux
    • Dust concentration: 1μg/m3
    • Noise: 0.1dB
    • Visibility: 1m
  • Accuracy:
    • Wind speed: ±2%
    • Wind direction: ＜3°
    • Atmospheric temperature: ±0.5℃
    • Atmospheric humidity: ±3%RH
    • Atmospheric pressure: ±1hPa
    • Precipitation: ±5%(@ wind speed≤5m/s)
    • Solar radiation and Illuminance: ±5%(@ vertical irradiation)
    • Dust concentration: ±5%
    • Noise: ±3dB
    • Visibility: ±15%
  • Supply: 12-24VDC
  • Output: RS485, RS232, SDI-12
  • Communication Protocol: Modbus-rtu(default), NMEA-0183, SDI-12
  • Data update cycle: 1s(default), other optional
  • Power consumption: <3W, auto-heating power: 6W
  • Operating temperature: -40-+80℃
  • EMC: EN61000-6-3, EN61000-3-3, EN61000-3-2, EN61000-6-1
  • IP Rating: IP66
  • Main material: ASA, Aluminum alloy base(optional)
