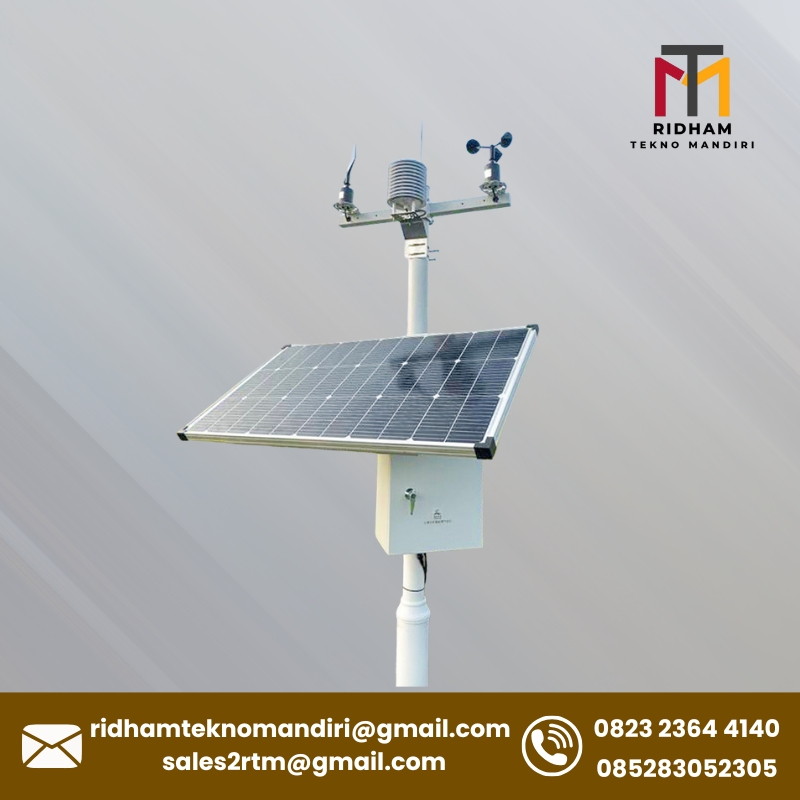

Specification
- Data logger: akuisisi data meteorologi, analisis komputasi, tampilan, penyimpanan dan komunikasi (4G/Ethernet/WIFI). Memiliki LCD 7″ dan mendukung unduhan data historis lokal.
- Communication gateway: Rs485, 4G, WiFi, dan Ethernet gateways opsional.
- Sensors and cables: tergantung kebutuhan pengguna. Dapat mencakup sensor untuk wind speed, wind direction, atmospheric temperature, atmospheric humidity, panel temperature, total solar radiation, scattered radiation, dan direct radiation.
- Multilayer radiation shield (shutter box): digunakan untuk menginstal sensor atmospheric temperature dan humidity.
- Protective box: untuk menempatkan data loggers, solar charging controller, dan baterai/power supply.
- Solar energy power supply system: opsional, termasuk solar panels, bracket, solar charging controller, dan baterai.
- Vertical rod and mounting parts: tinggi standar 2.5m dan menyertakan lightning protection device; tinggi lainnya dapat disesuaikan.
Main measurement parameters:
- Wind speed:
- Range: 0-45m/s
- Resolution: 0.1m/s
- Accuracy: ±(0.3±0.03v)m/s
- Wind direction:
- Range: 0-360º
- Resolution: 1°
- Accuracy: ±3°
- Air temperature:
- Range: -40℃ to +60℃
- Resolution: 0.1℃
- Accuracy: ±0.5℃
- Air humidity:
- Range: 0-100%RH
- Resolution: 0.1%RH
- Accuracy: ±3%
- Atmospheric pressure:
- Range: 300-1100hpa
- Resolution: 0.1hpa
- Accuracy: ±0.5hpa
- Solar radiation:
- Range: 0-2000W/m²
- Resolution: 1W/m²
- Accuracy: ±3%
- Illuminance:
- Range: 0-200klux
- Resolution: 1lux
- Accuracy: ±5%
- Rainfall:
- Rate: ≤4mm/min
- Resolution: 0.2mm
- Accuracy: ±4%
- Soil temperature:
- Range: -30℃ to +70℃
- Resolution: 0.1℃
- Accuracy: ±0.5℃
- Soil humidity:
- Range: 0-100%V/V
- Resolution: 1%
- Accuracy: ±3%
- Soil conductivity:
- Range: 0-10ms/cm
- Resolution: 0.001ms/cm
- Accuracy: ±3%
- CO2 concentration:
- Range: 0-5000ppm
- Resolution: 1ppm
- Accuracy: ±3%
- Soil PH:
- Range: 0-14ph
- Resolution: 0.1ph
- Accuracy: ±0.1ph
