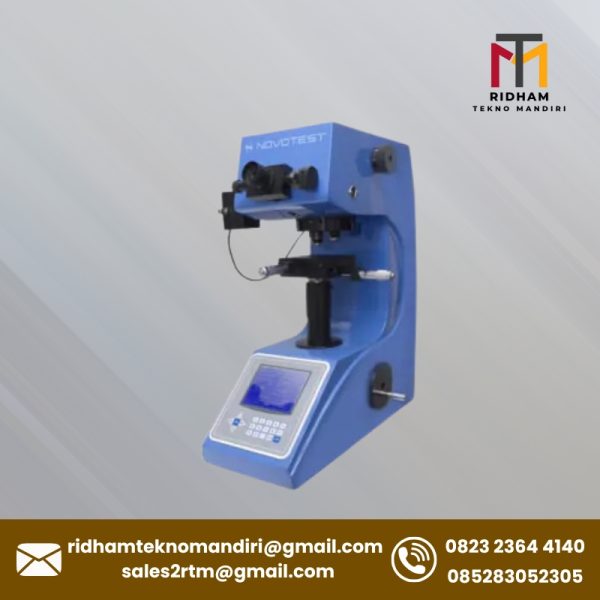

Specification
Indenter:
Vickers: four-sided diamond pyramid (136°)
Scales:
- HV0.01
- HV0.025
- HV0.05
- HV0.1
- HV0.2
- HV0.3
- HV0.5
- HV1
Conversion scales:
HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Testing load:
- 10 gf (0.098 N)
- 25 gf (0.245 N)
- 50 gf (0.49 N)
- 100 gf (0.98 N)
- 200 gf (1.96 N)
- 300 gf (2.94 N)
- 500 gf (4.9 N)
- 1000 gf (9.8 N)
Hardness range:
5–3000 HV
Measuring time:
5~99 detik
Testing materials:
- Carburized layer, ceramic, steel, non-ferrous metals
- Sheet, metal foil, plating, fine specimen, surface hardened layers
- Coatings, nitride layer, pengukuran gradasi carburized layer dan hardened layer
- Pengukuran kekerasan objek yang tipis dan kecil
Max height of test sample:
90 mm
Max depth of test sample:
120 mm
Optical measuring system:
- Objective lenses: 10X, 40X
- Eyepiece: 10X
- Total magnification: 100X, 400X
- Measuring range: 0–200 µm
- Index value: 0.25 µm
Data output:
LCD display, built-in printer, RS-232 interface
Body color:
Biru, Putih
Recommended operating conditions:
- Suhu udara: 0…+40 °C
- Tekanan udara: 94 – 106.7 kPa
- Kelembaban: hingga 65%
Net weight:
60 kg
Gross weight:
70 kg
Package dimensions:
580 × 410 × 870 mm (P × L × T)
