Specification

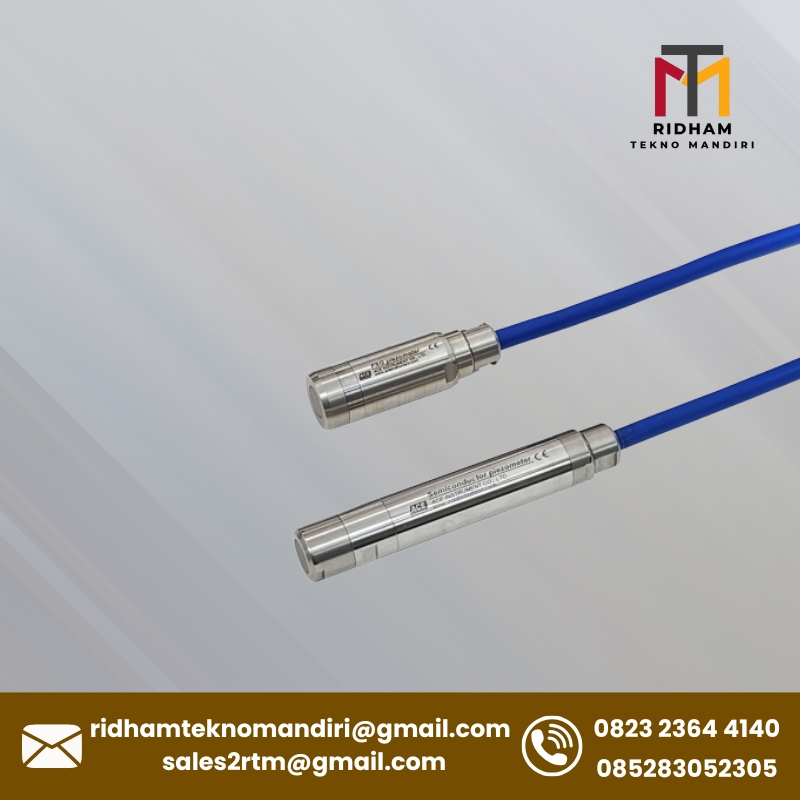

Model 4510:
- Sensor Element: FSG sensor (foil strain gage)
- Range: 2.0~35kg/cm²
- Rating output: 1 mV/V (1000×100)
- Accuracy: ±0.5% FSR
- Non-linearity: 1.0% FSR
- Over range capacity: 150% FSR
- Resistance: 3500
- Exciting voltage recommended: Kurang dari 5 VDC
- Insulation resistance: Lebih dari 100M/500V
- Operating temperature: -30~80°C
- Water proof: 1000mH2O
- Material: Stainless steel, high grade epoxy potting
- Filter: Standar: 50 micron sintered stainless filter; Opsional: 1 micron ceramic filter
- Weight: 0.4kg
- Signal cable: Ø10mm, 0.5mm× 5C shielded PVC cable
Model 4515:
- Sensor Element: Semi-conductor sensor
- Range: 1.0~20kg/cm²
- Rating output: 4~20mA (Opsional 1~5VDC)
- Accuracy: ±0.5% FSR
- Non-linearity: 1.0% FSR
- Over range capacity: 110% FSR
- Exciting voltage recommended: 12-30 VDC
- Insulation resistance: Lebih dari 100M/500V
- Operating temperature: -30~80°C
- Water proof: 1000mH2O
- Material: Stainless steel, high grade epoxy potting
- Filter: Standar: 50 micron sintered stainless filter; Opsional: 1 micron ceramic filter
- Weight: 0.6kg
- Signal cable: Ø10mm, 0.5mm× 5C shielded PVC cable
